CE Certification Fireproof Door For Interior Wall Incombustible A1
Class 100% Free Asbestos Fiber Cement Board
application: Partition wall and ceiling
Fireproof structure: Fire Rating Partition, Ceiling, wall, door,
Exterior Cladding and façade structure
Sound Insulation structure
Usage in wet areas
Other purpose: applied to furniture, interlayer floor, interior
substrate
Product Introduction:

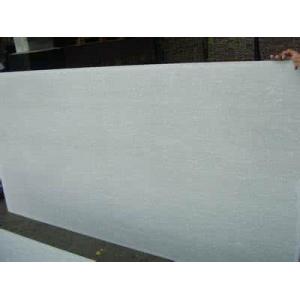

Fiber Cement Board is a composite material made of quartz sand,
cement and cellulose fibers.This product adopts imported pure paper
pule from Canada, not included waste paper pulp. Fiber cement board
is manufactured in a sheet form and they are used for interior and
exterior suspension, partition and flooring application.The normal
size is 1220×2440mm,thickness from 4.5~20mm, and density is
1.3~1.6g/cm3.There are low-density,middle-density and high-density.
Product | Fireproof Fiber Cement Board |
Dry Density(g/cm3) | 1.2-1.3 |
Water absorption (%) | 33-40 |
Wet expansion (%) | 0.25 |
Water Content(%) | 13-20 |
Bending Strength(Mpa) | 9-16 |
| Shrinkage rate(%) | 0.15-0.2 |
Frost resistant | No delamination and crack after 25cycles under freezing and thawing |
| Water penetration | No water drop on the board surface after 24hours |
Main Features:
Performance like high strength,light weight,fire and water
proofing,green and envirmental friendly,high effcient and energy-saving.Therefore,this kind of new materials is vigorously
developed and recommedded by the country.
Specification:
(1). Thickness: 4-25mm
(2). Standard size: 1220*2440mm or 1200*2400mm
(3). Note: other specification is available
Installation methods:
1. We draw the installation guideline to define the fixing
position, the center distance is 1200mm.
2. USe UC type keel hang fitting to link and fix the room and key
keel, keep the key keel horizontal.
3. Use the caliper to vertically fix the sub keel on key keel,the
center distance of the sub keels is 611mm.
4. TO install the horizontal keels as per the request,is center
distance is 1222mm.
5. Use the tapping screw fix the woersen board on the sub-keel and
do the treatment of the seam connection.
